Monitoring

Keeping your modules running smoothly is essential for any application. The monitoring feature ensures your Mission Control (your wallet) and modules — Satellites and Orbiter (Analytics) — stay operational by automatically refilling cycles when they run low. This helps prevent unexpected downtime, allowing you to focus on building and growing your product without worrying about cycle balances.

Features​

  • Cycle refilling: Monitored modules are automatically replenished when their balances drop below the configured thresholds.
  • Self-Monitoring: Your Mission Control ensures that both your wallet and modules maintain sufficient cycles, with full control remaining in your hands at all times.
  • Automatic ICP Conversion: Can mint new cycles from the ICP in your wallet, ensuring your canisters stay adequately funded.
  • Hourly Checks: The system evaluates balances once an hour.

Why Enable Monitoring?​

When a smart contract runs out of cycles on the Internet Computer, it stops functioning, which can disrupt your application or service. Enabling monitoring provides peace of mind by automating the management of cycles, ensuring your modules are always ready to perform. It also saves a little time by eliminating the need for manual top-ups.

It’s important to note that if your smart contracts — whether it’s your wallet or a module — run out of cycles, they will enter a grace period. During this time, the module stops working but can still be restored. If no action is taken, the module eventually gets deleted, resulting in the permanent loss of its data and functionality.

How does it work?​

Monitoring runs hourly within your Mission Control, which acts as the central hub for managing all monitored modules. The process follows these steps:

Periodic Balance Checks​

Your Mission Control evaluates the cycle balances of all modules you’ve enabled for monitoring, including itself. Monitoring cannot be enabled without also observing Mission Control (your wallet), as it serves as the source for auto-refills.

The cycle balance of each module — and Mission Control — is compared against a threshold you’ve preconfigured.

For example:

  • Module Threshold: 1 T Cycles
  • Current Balance: 0.8 T Cycles

If the balance is below the threshold, as in the example above, the system will proceed to attempt an auto-refill.

Auto Refilling​

When a module’s balance is below its threshold, Mission Control attempts to top it up by following these rules:

a. Topping up from Mission Control's cycles​

If Mission Control has enough cycles above its own threshold, it uses them to refill the module.

For example:

  • Mission Control Balance: 10 T Cycles
  • Mission Control Threshold: 3 T Cycles
  • Module Threshold: 1 T Cycles
  • Current Module Balance: 0.5 T Cycles
  • Top-Up Amount (Configured): 2 T Cycles

In this case, Mission Control deducts 2 T Cycles to top up the module, leaving:

  • Mission Control Balance: 8 T Cycles
  • Module Balance: 2.5 T Cycles

b. When Mission Control cannot top up​

If Mission Control’s balance is below its own threshold, it cannot top up the module.

For example:

  • Mission Control Balance: 10 T Cycles
  • Mission Control Threshold: 12 T Cycles

In this example, Mission Control’s balance is already below its threshold; therefore, no top-up can be performed unless it also holds ICP.

c. Minting Cycles from ICP​

If Mission Control’s balance is insufficient but it holds ICP, it can mint cycles to refill the module.

For example:

  • Mission Control Balance: 10 T Cycles
  • Mission Control Threshold: 12 T Cycles
  • ICP Balance: 1 ICP

Mission Control uses part of its ICP to mint cycles:

  • Mission Control Balance (after minting): 10 T Cycles
  • Module Balance: 2.5 T Cycles
  • ICP Balance (after minting): ~0.75 ICP
important

Mission Control can only refill itself by minting new cycles with ICP.

d. When no top-up is possible​

If Mission Control is below its threshold and lacks sufficient ICP to mint cycles, no top-up is performed.

Notifications​

After each successful top-up, developers who have opted-in will receive an email notification. These notifications provide details such as the module that was refilled and the amount of cycles added.

note

Currently, there are no notifications for failed top-up attempts (e.g., when Mission Control or a module cannot be refilled). Adding this feature is part of our roadmap.

Configuration​

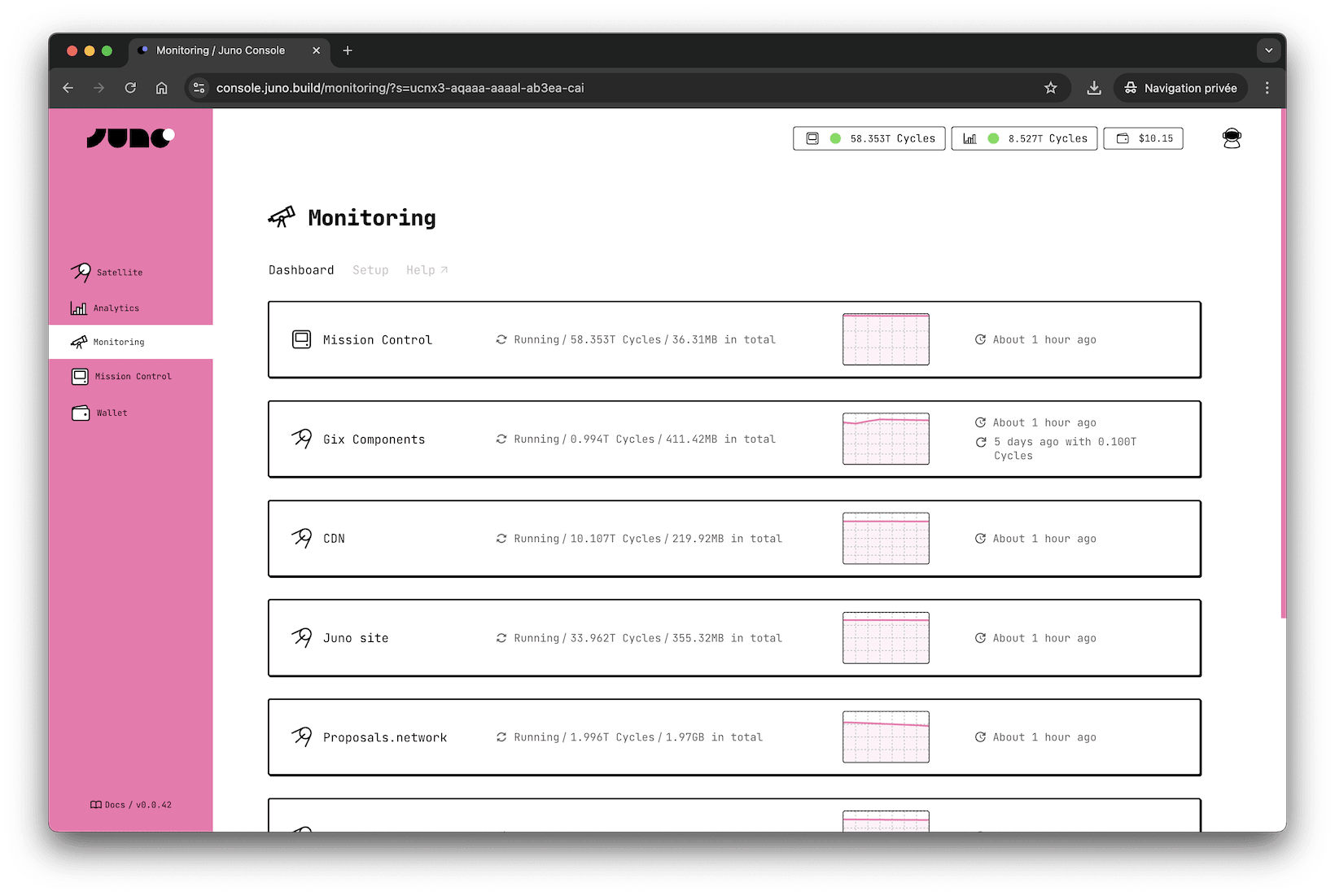

To enable monitoring, go to the Monitoring Section in the Juno Console. Start the wizard by clicking Enable Auto-Refill and follow the prompts to select the modules you want to monitor, choose a pre-defined strategy or create a custom one, and enable the feature.

The wizard simplifies the setup process, making it easy to configure monitoring according to your needs.
